Mounting the Gratical X is pretty easy if you have the Axis Mini and a 15mm rail mounting point on your camera or cage/rig. But what if you don’t have a solution yet and are short on cash. I found one company that has some pretty inexpensive bits and they seem to be built pretty well. I already have the Wooden Camera EVF mount and it comes with a sled for mounting underneath a EVF or a monitor. Works great and the arm is a NATO rail. That makes it updatable with other NATO devices. I went looking for a ARRI Rosette style mount and found this one.

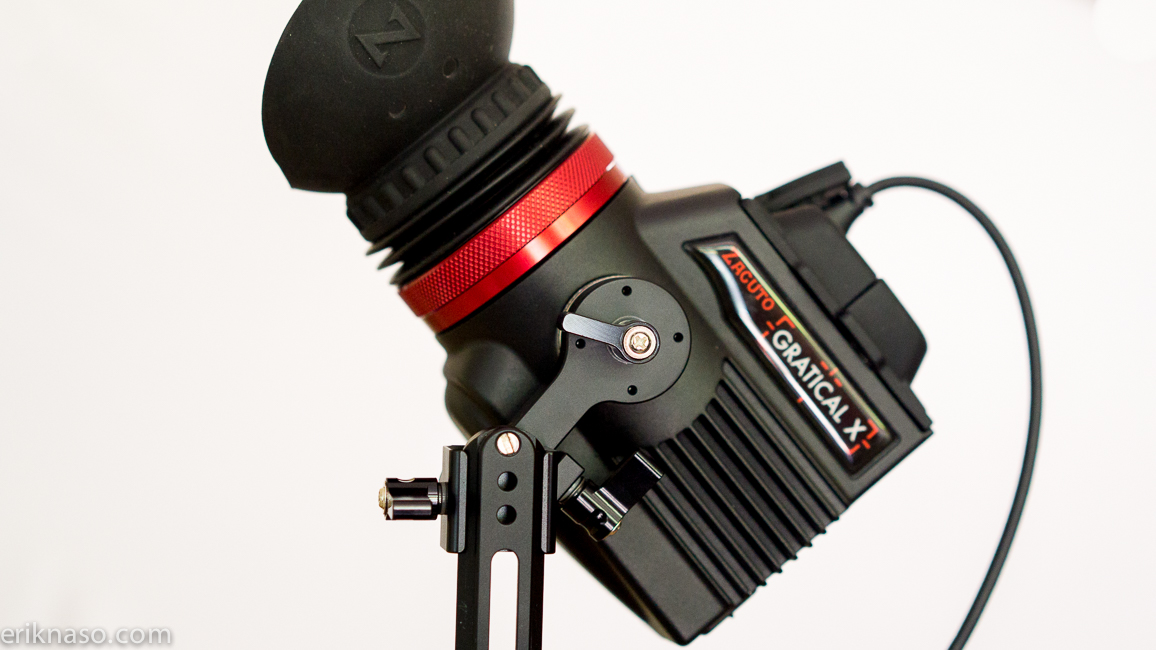

Smallrig Standard Arri Style Rosette EVF Mount for NATO Rail System and Zacuto Gratical HD EVF1583
It fits perfect! and only cost $72. The Rosette lines up perfect with the Graticals and the tilt locks nice and tight. If you want to make it adjustable while shooting I found not tighten all the way will make it easy to grab the viewfinder and tilt without loosening and tightening the joint. Really great! The NATO clamp also does what it should and clamps down nice and tight.
Smallrig® EVF Mount with 15mm Rod EVF Leveling System for Monitor SmallHD DP4 and Other Viewfinder with Standard 1/4 Inches Thread- 1587
If you have a 15mm rail mount solution then this EVF mount might be a good inexpensive option at $116. I haven’t tried it but just looking at the image I think I would prefer the Wooden Camera EVF mount at $195.00 or Axis Mini but hey! I’m trying to save you some cash! 😀
The reason is the NATO arm doesn’t have end pins to prevent the clamp from sliding off in case you loosen the clamp to much. That little safety feature is important.
Another option is a NATO clamp to NATO rail on the rig. This would replace the 15mm rail on the EVF mount. As you can see you have so many combination options and it’s fairly easy to find the parts and build your own EVF setup that fits your camera.
Have a great solution for mounting your EVF? Please share in the comment!
